PCE UPS System M8-2000 - (2000VA / 900W)PCE UPS System V8 - (1700VA / 720W)
Product details
Product overview.

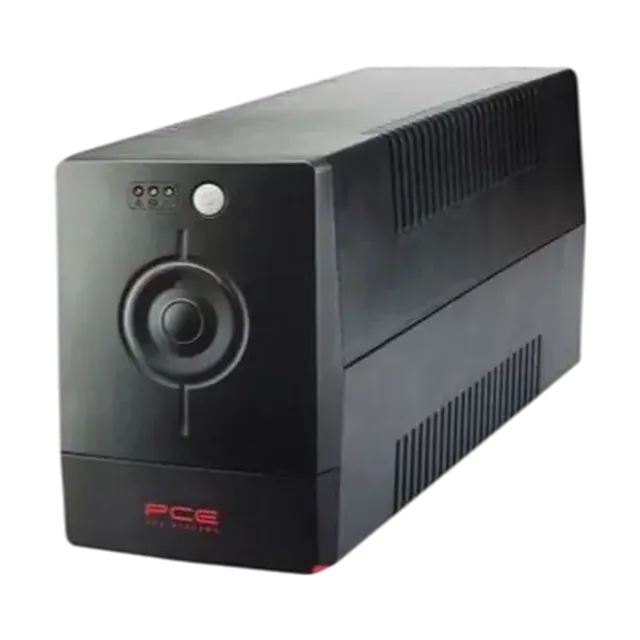

The PCE V8 Series 1700VA / 720W Line Interactive UPS System is a compact and reliable uninterruptible power supply designed to safeguard desktop PCs, office workstations, networking devices, and home entertainment electronics. Featuring Automatic Voltage Regulation (AVR), it stabilizes unstable mains power without draining the internal batteries during brownouts or over-voltage spikes. Equipped with twin 12V sealed lead-acid batteries, digitized microprocessor control, and quick 2-to-6 millisecond transfer times, the V8-1700 delivers clean backup power to protect sensitive equipment against data loss, surges, lightning, and electrical noise.
Specifications
Specifications.
- Brand
- PCE
- Category
- Home, Living & Office
- Brand
- PCE Power
- Warranty
- Standard 1-Year Manufacturer Warranty
- Capacity
- 1700VA / 720W
- Model Name
- V8-1700 / PCE 1700 V8
- Backup Time
- Approx. 10 to 20 minutes (depending on connected load)
- Form Factor
- Compact Desktop Unit
- Series / Line
- V8 Series
- Transfer Time
- Typical 2 to 6 ms
- Power Capacity
- 1700 VA / 720 Watts
- Output Waveform
- Simulated Sine Wave
- Audible Noise Level
- < 40 d BA at 1 meter
- Input Voltage Range
- 162 VAC to 290 VAC
- Protection Features
- Overload, Short-Circuit, Lightning & Surge Protection, EMI/RFI Filtering
- Additional Functions
- Cold Start (DC Power On), ABM Technology, Generator Compatible
- Battery Configuration
- 2× 12V / 7Ah or 9Ah Sealed Lead-Acid (SLA) Batteries
- Operating Temperature
- 0°C to 40°C (0 to 90% relative humidity, non-condensing)
- SKU / Model Reference
- PCE-V8-1700 / 1700 V8 1700VA
- Technology / Topology
- Line-Interactive with Automatic Voltage Regulation (AVR)
- Typical Recharge Time
- 4 to 6 hours (to 90% full capacity)
- Status Displays & Alarms
- LED Status Indicators and Audible Alarm System
- Input/Output Nominal Frequency
- 50 Hz / 60 Hz Auto-Sensing
