PCE UPS System M8
Product details
Product overview.

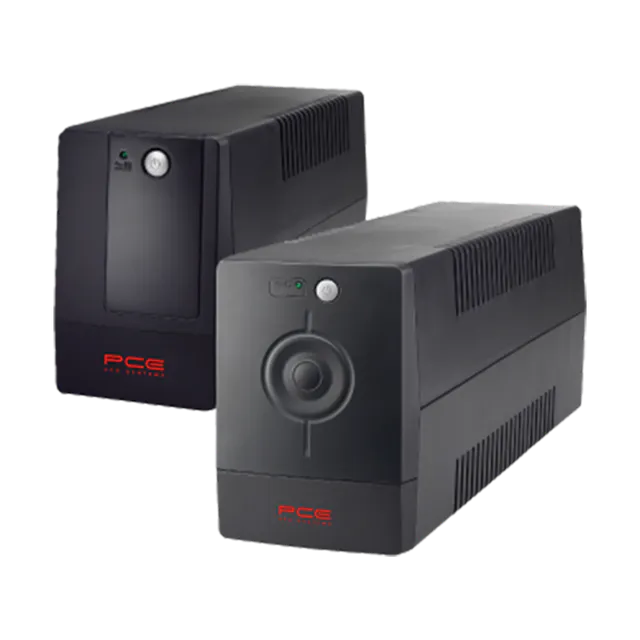

The PCE Power Systems M8 Series includes the M8-900, M8-1500, and M8-2000. These are Line-Interactive Uninterruptible Power Supplies (UPS) equipped with integrated Automatic Voltage Regulation (AVR). They protect electronic data and hardware from blackouts, voltage drops (brownouts), power surges, and electrical noise.
Specifications
Specifications.
- Brand
- PCE
- Category
- Home, Living & Office
- Capacity
- 900VA / 480W
- Topology
- Line-Interactive with built-in Automatic Voltage Regulator (AVR)
- Form Factor
- Ultra-compact tower design
- Transfer Time
- Typical 2 to 6 milliseconds (Maximum 10 ms)
- Acoustic Noise
- Less than 40 dB at 1 meter distance
- Frequency Range
- 50 Hz or 60 Hz (Auto-sensing, ± 10% range)
- Net Unit Weight
- 4.8 kg (10.56 lbs)
- Nominal Voltage
- 220 / 230 / 240 VAC (1 Phase, 2 Wires)
- Recharge Window
- 3 to 4 hours to reach 90% capacity
- Waveform Design
- Simulated Sine Wave (Modified Sine Wave)
- Off Mode Charging
- Keeps charging the internal battery even when the UPS power switch is turned off
- Communication Port
- Built-in USB/RS-232 connection for automated OS shutdown setup
- Output Receptacles
- 2 to 3 Universal Output Sockets (Model variation dependent)
- Voltage Regulation
- 220 / 230 / 240 VAC ± 1%
- Data Line Shielding
- RJ11 / RJ45 network, modem, or fax surge filtering ports
- Frequency Stability
- 50 Hz or 60 Hz ± 1%
- Dimensions W X D X H
- 100 x 278 x 140 mm (3.9″ x 10.8″ x 5.5″)
- Apparent Power Rating
- 900 VA
- Internal Battery Pack
- 1x 12V / 9Ah sealed, leak-proof lead-acid battery (24V system)
- Acceptable Voltage Window
- 162 VAC to 290 VAC
- Active Power Real Capacity
- 480 Watts
- Built In System Protection
- Dedicated hardware layers against short circuits, overcharging, overloads, and deep-discharge conditions
- Advanced Battery Management Abm
- Multi-stage charging to extend internal battery lifespan
